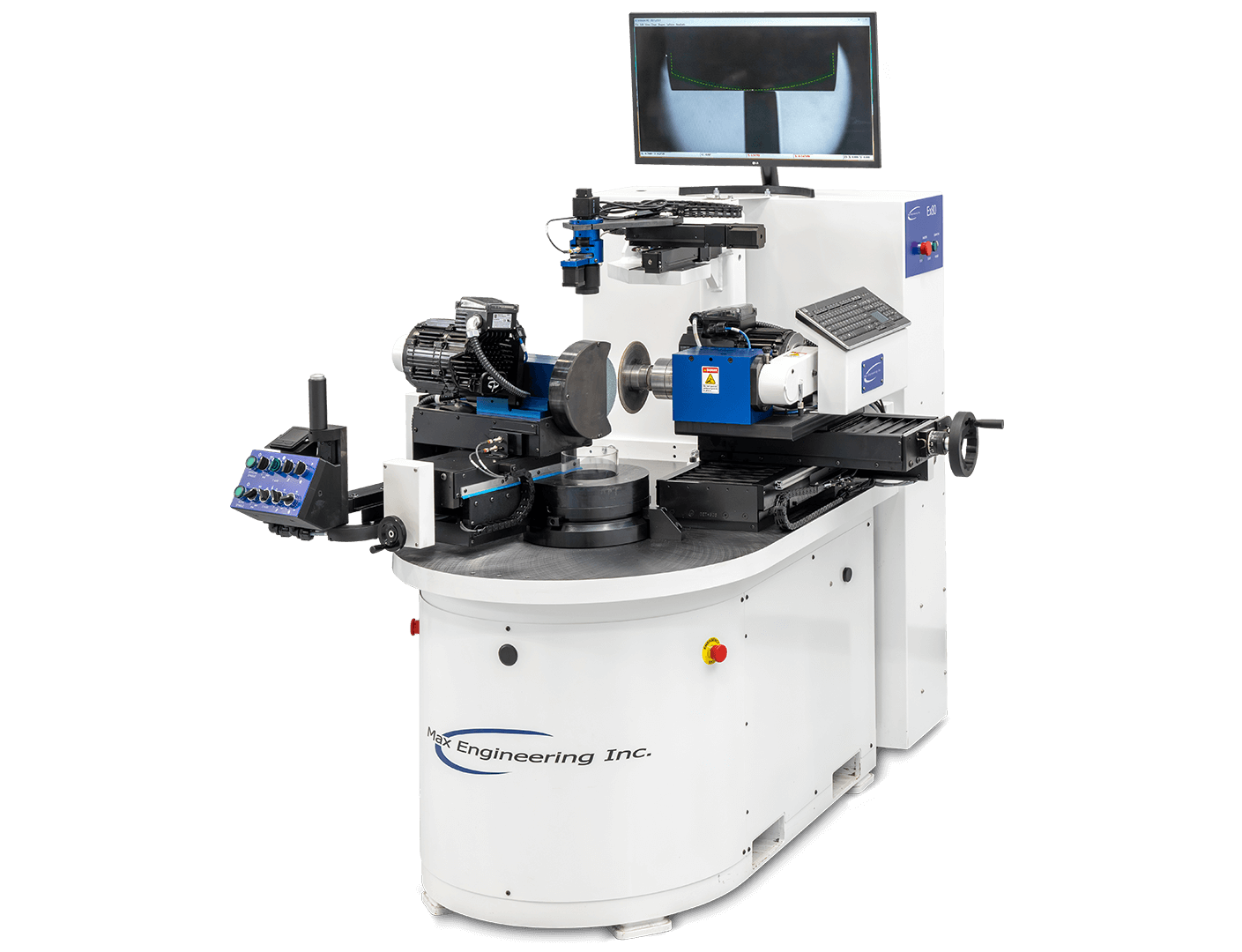

EX80 6-Axis wheel dresser

A Grinding Wheel Dresser System From Max Engineering Inc.

American Manufacturing.
Local Support.
Flawless Dressing.

innovation in
wheel dressing

Continental Diamond Tool has teamed up with Max Engineering Inc. as an authorized reseller to offer the EX80 Profile Grinder—a powerful, American-made solution for precision wheel dressing. With over 30 years of experience in grinding wheel dressing systems, Max Engineering has continually advanced its designs—starting with the EX50 in 1993, evolving to the EX70 in 2003, and now offering the EX80, the most accurate and operator-friendly model yet. Backed by Max’s proprietary ExVision software, the EX80 combines precision, durability, and ease of use.

EX80 Axes & Capabilities:

  • T-Axis: CNC ball screw-driven tangent oscillating table slide

  • Y-Axis: CNC ball screw-driven for diametrical positioning and inside dressing

  • Z-Axis: CNC for advanced inside dressing or manual for in-feed dressing

  • X-Axis: Manual ball screw-driven for wheel length control

  • Camera System: CNC-controlled full HD camera system

Spindle Options:

  • Super Precision

  • High Precision

Wheel capacity:

  • 0–16” (0–400 mm)

  • 0–20” (0–500 mm)

The EX80’s built-in precision wheel balancing delivers the fine edge quality needed for critical corners in tight-tolerance applications.

  • Effortless Visual Control

    A full HD camera with Automated Zoom and Slides (“AZP”) provides crystal-clear, adjustable views of the dressing process. Displayed on a large 32” LED monitor, the system makes setup faster, more accurate, and easier on the eyes—no squinting, straining, or second-guessing.

  • Advanced Dust Removal + LED Backlight

    An integrated 4” suction tube runs through the axle for powerful, direct dust removal. A high-flow backlight with super-bright LEDs and an automatic wiper system keeps your view clean and well-lit, enhancing safety and visibility. (Exclusive Max Engineering feature.)

  • Exclusive Swivel Mode for Complex Wheels

    The optional Soft Axis (Swivel Mode) replaces the traditional swivel and does much more. It enables precise dressing between adjacent wheels in a pack—perfect for radii and dish forms in compact setups. (Exclusive Max Engineering feature.)

  • Operator-friendly Local Controls

    All motion, table, jog, and spindle controls are ergonomically positioned on the local operator station. Adjust speeds, start/stop the spindle, set stops, or jog the table—right at your fingertips, without leaving your work area.

  • Smart Automation Between Wheels

    The EX80 includes automated inside dressing between wheels as a standard feature. Eliminate manual repositioning and reduce setup time—especially valuable when dressing complex wheel packs with tight tolerances.

  • Powerful Software Integration

    ExVision (machine vision) and ExControl (motion control) software come standard—exclusive to the EX80. These tools simplify diagnostics, enhance precision, and enable remote support when needed. Just connect to the internet for real-time assistance.

  • Built-to-Last Solid Steel Construction

    With a 2” thick solid steel base and oversized 280mm axle bearing, the EX80 is designed for maximum rigidity and stability. Linear rails and preloaded ball screws ensure consistent accuracy and long-term reliability—even under tough shop conditions.

  • Flexible, Safe-Lock Spindle System

    Choose between a Super Precision Quick-Change or High-Precision Fixed Spindle system. Each uses durable roller bearings and includes spindle locks and safety sensors that prevent the machine from running while locked. (Exclusive Max Engineering feature.)

  • Operator Safety Enhancements

    New Hold-to-Run functionality requires constant engagement during spindle operation—automatically stopping the system if released. Combined with redesigned, localized controls, these features boost both operator safety and efficiency during wheel truing.

  • Designed for Easy Maintenance

    Built-in diagnostics alert you to component failures. The modular sensor/motor system and plug-and-play design simplify repairs—no rewiring needed. A solid-state drive, integrated PC, and cabinet cooling system keep everything running smoothly for years.

Frequently Asked Questions

  • Installation, training, and ongoing service are provided by Max Engineering’s technical team. After placing the order, CDT will put you in direct contact with Max Engineering’s service team to ensure a smooth experience from order to operation with expert, factory-level support.

  • Yes. Max Engineering offers add-ons like the Soft Axis Swivel Mode to enhance functionality based on your dressing needs. Call us to discuss your requirements: 1-800-443-6629.

  • Our team can help evaluate your application and workflow to determine whether the EX80 is a good fit for your wheel dressing needs.

  • Yes, the EX80 is compatible with many of CDT's custom rotary dressers and grinding wheels. Our engineering team can help ensure proper setup and integration so you get the most out of your dressing and grinding operations using CDT tools.

Download Brochure

Ready to Upgrade Your Dressing Process?

Experience the precision and ease of the EX80 Grinding Wheel Dresser System From Max Engineering Inc. View brochure
